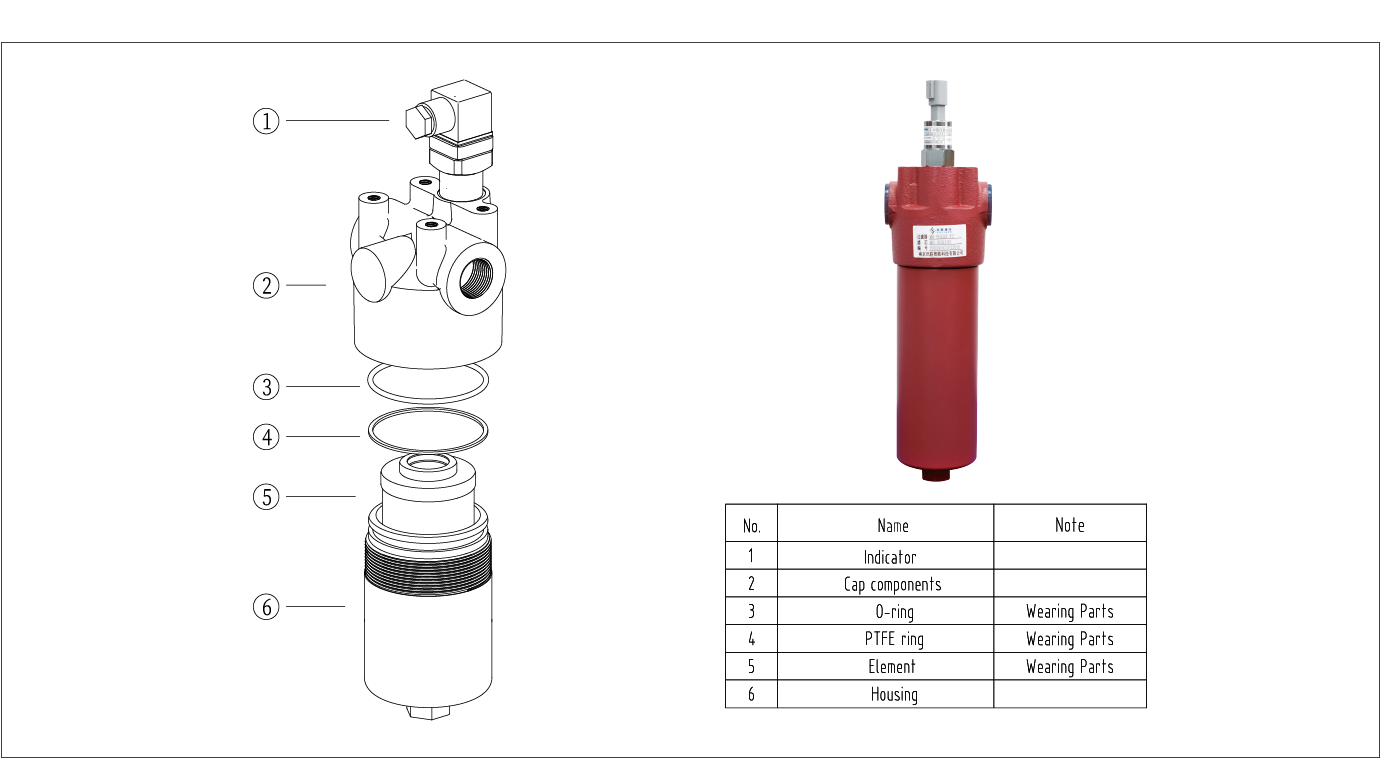

MH Series Pressure Line Filter
Type of Construction: Inline Mounted
Max Pressure: 28MPa
Flow Range: 35~95L/min
Connection: Thread
Operating Temp: -40°C~+120°C
Pressure Indicator Option: 0.5MPa
By-pass Valve Setting Pressure: 0.7MPa
Filter Media: Glass Fiber
Housing Material: Ductile Iron, Carbon Steel
Sealing Material: NBR
Fluid Compatibility: Suitable for mineral oil, synthetic oil
Please contact our sales staff if there is any additional media you need.
Features
Contamination Indicator
Visual or electrical contamination indicator can be installed on the filter to observe the contamination of element.
By-pass Function
By-pass valve will crack to protect the normal operation of element and the system when pressure drop reaches to the set valve.

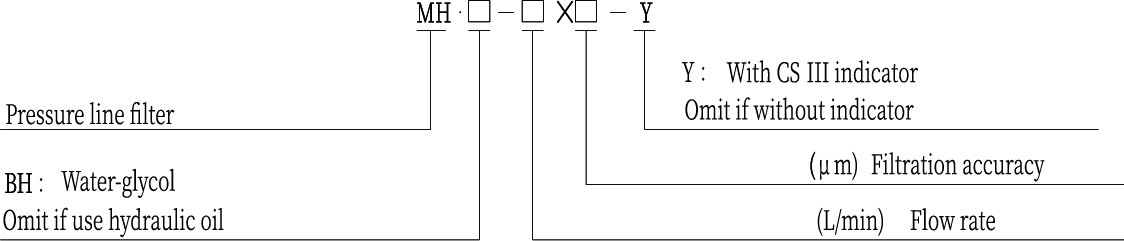

Model Code

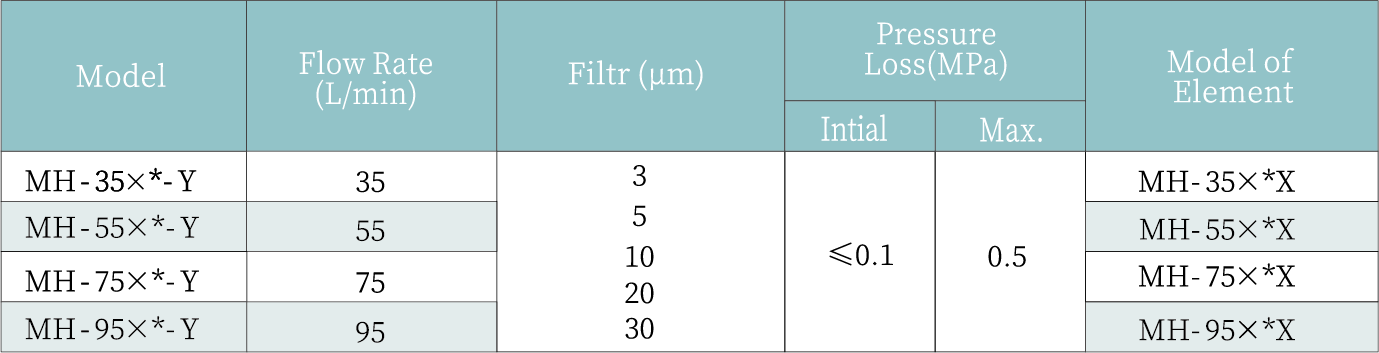

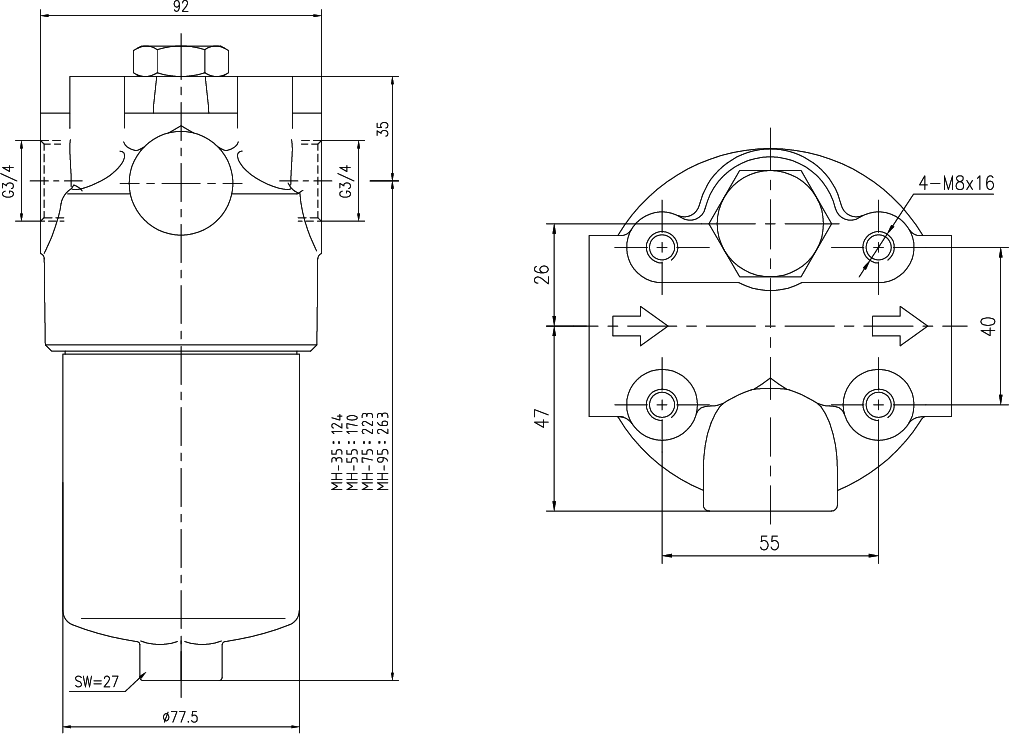

Technical Parameter and Mounting Size

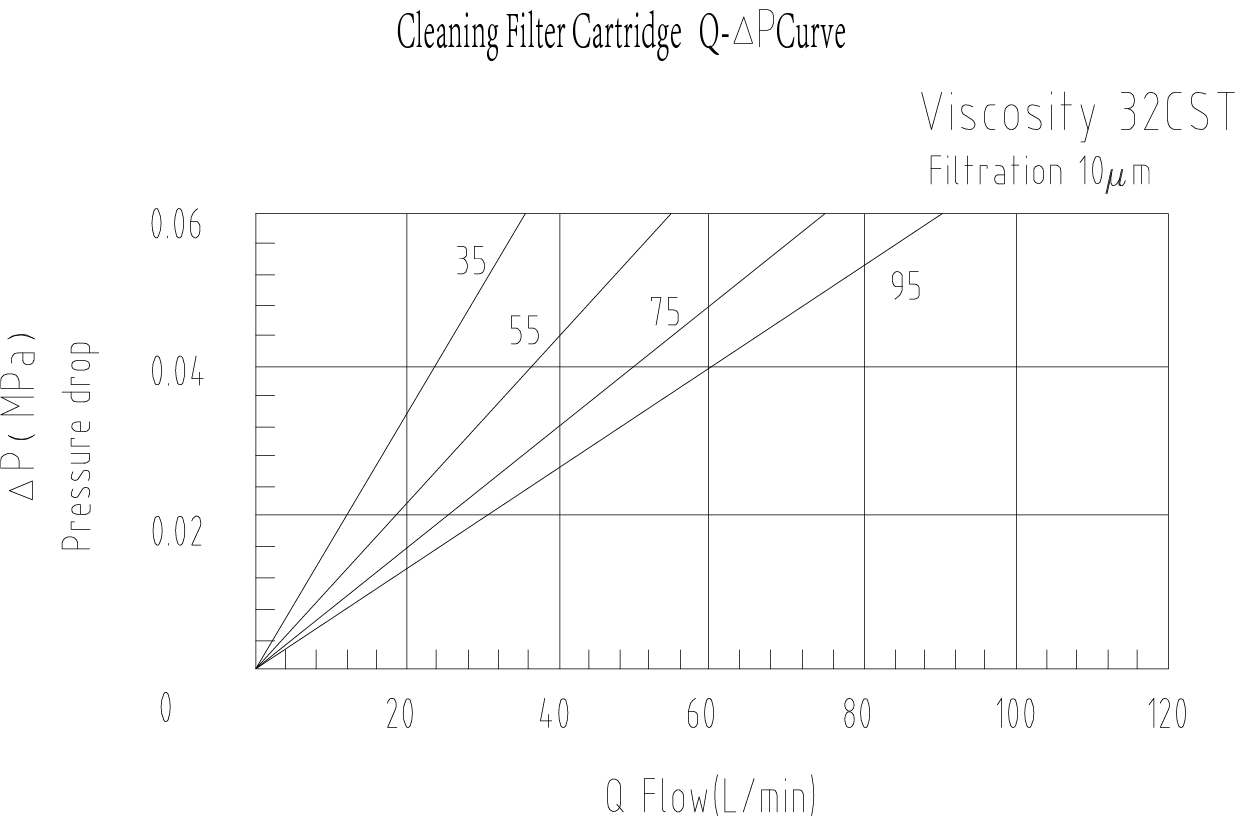

Element Pressure Drop against Flow Curves
