The suction filter protects the oil pump from contamination by larger particles. Typically installed at the suction pipe inlet, it ensures minimal pressure drop to prevent dry suction. High-quality filter paper or wire mesh is commonly used as the filtration media, delivering efficient protection and reliable performance.
The Wire Mesh EF Series Suction Filter is specifically designed for in-tank installation in excavators, ensuring efficient oil filtration to protect hydraulic systems from contaminants. As part of the EF Series Suction in Tank lineup, it features durable wire mesh construction, providing high dirt-holding capacity and reliable performance in demanding working conditions.
The EF Series Suction Filter in Tank for Excavators helps maintain optimal system cleanliness, reducing wear and preventing damage to hydraulic components. Its high-flow capacity and low-pressure drop design contribute to enhanced system efficiency and prolonged equipment lifespan. Manufactured with precision engineering and high-quality materials, this filter ensures long-term durability and reliable performance under extreme operating conditions.
With customizable configurations available, the EF Series suction filter is suitable for a wide range of excavator models, offering a cost-effective and efficient filtration solution for modern hydraulic systems.
Specifications
Type of Construction: Inside Tank Mounted
Range Flow: 350~1400L/min
OperatingTemp:-40°C~+120°C
Filter Media: Wire Mesh
Sealing Material: NBR
Fluid Compatibility: Suitable for mineral oil, synthetic oil
Please contact our sales staff if there is any additional media you need

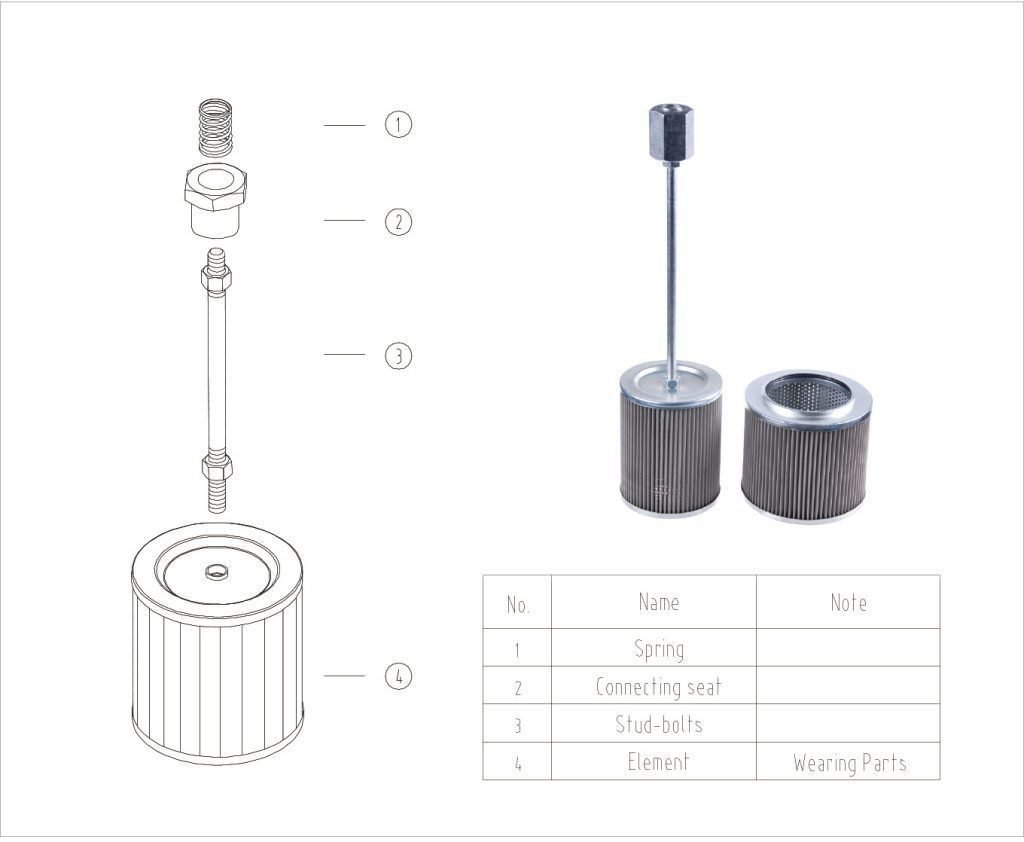

Mounting Instruction

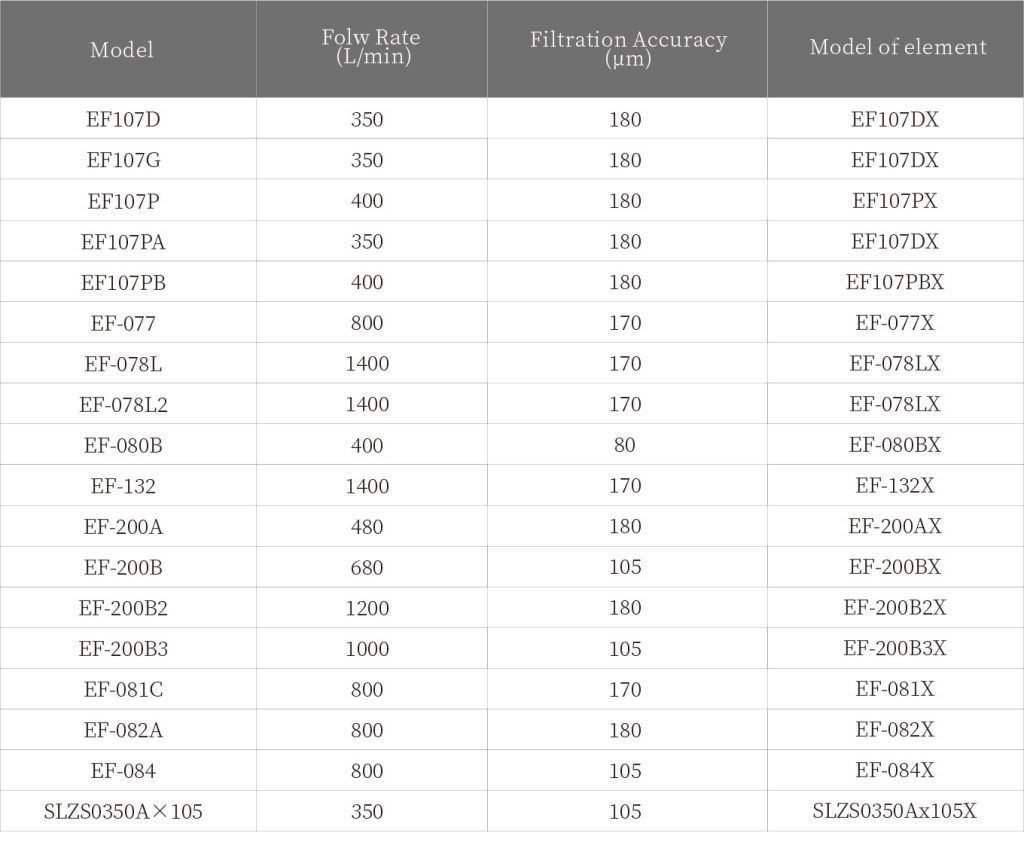

Technical Parameter

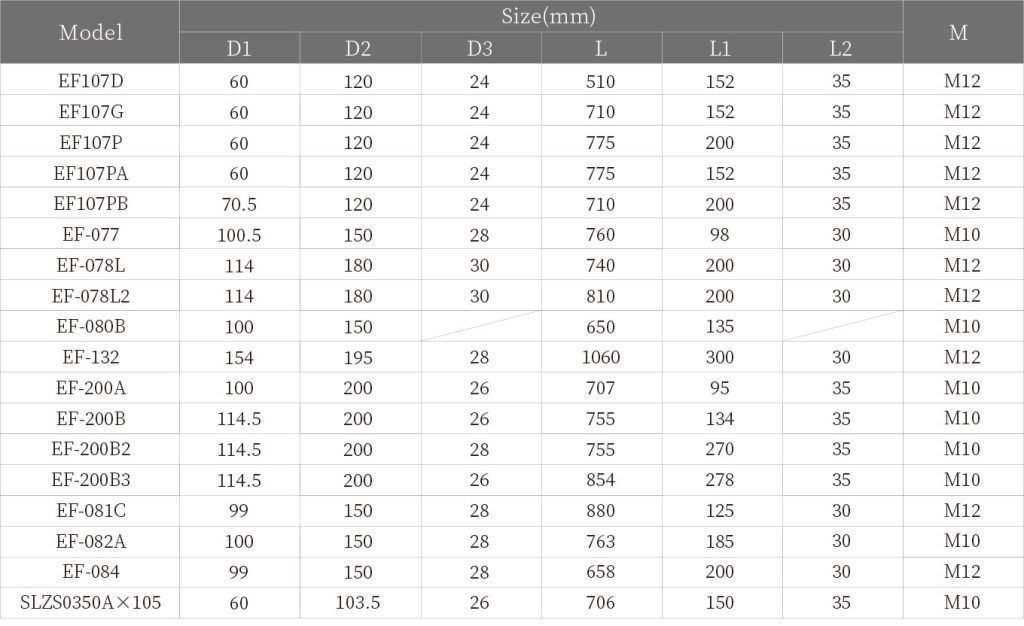

Mounting Diemension
Element Pressure Drop against Flow Curves
