MLF Series Pressure Line Filter

MLF Series Pressure Line Filter

Type of Construction: Inline Mounted

Max Pressure: 10MPa

Flow Range: 30~660L/min

Connection: Thread

Operating Temp: -40°C~+120°C

Pressure Indicator Option: 0.5MPa

By-pass Valve Setting Pressure: 0.6MPa

Filter Media: Glass Fiber

Housing Material: Aluminum Alloy

Sealing Material: NBR

Fluid Compatibility: Suitable for mineral oil, synthetic oil

Please contact our sales staff if there is any additional media you need.

Category:

Features

Contamination Indicator

Visual or electrical contamination indicator can be installed on the filter to observe the contamination of element.

By-pass Function

By-pass valve will crack to protect the normal operation of element and the system when pressure drop reaches to the set valve.

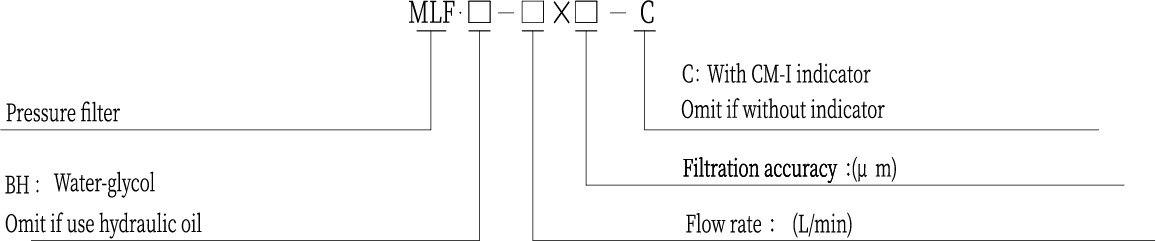

Model Code

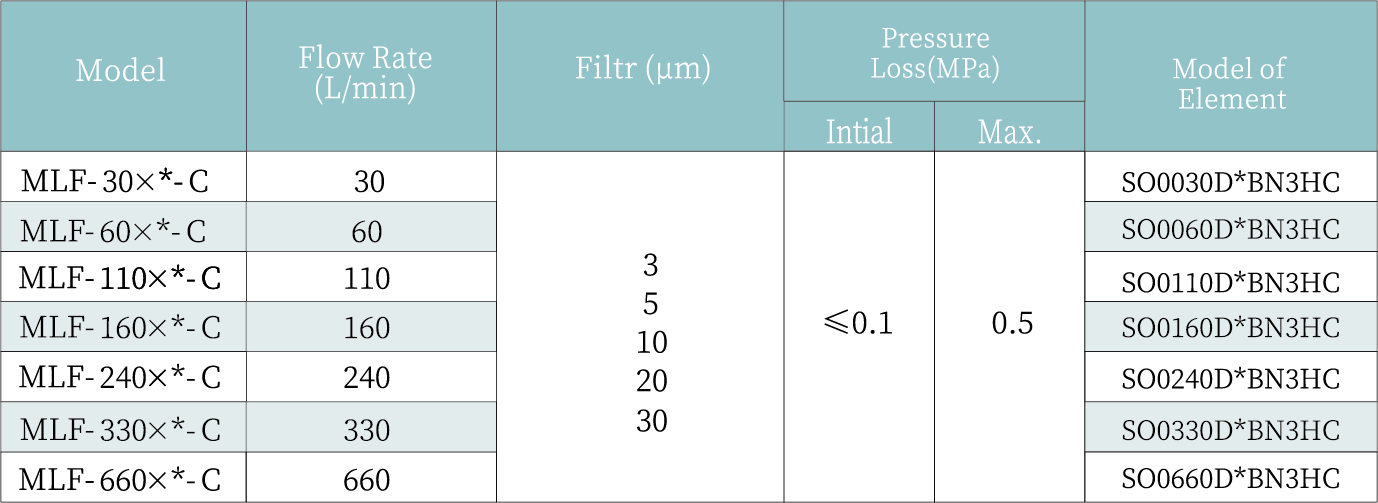

Technical Parameter

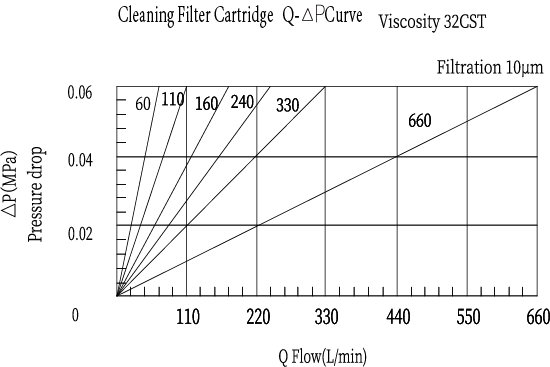

Element Pressure Drop against Flow Curves

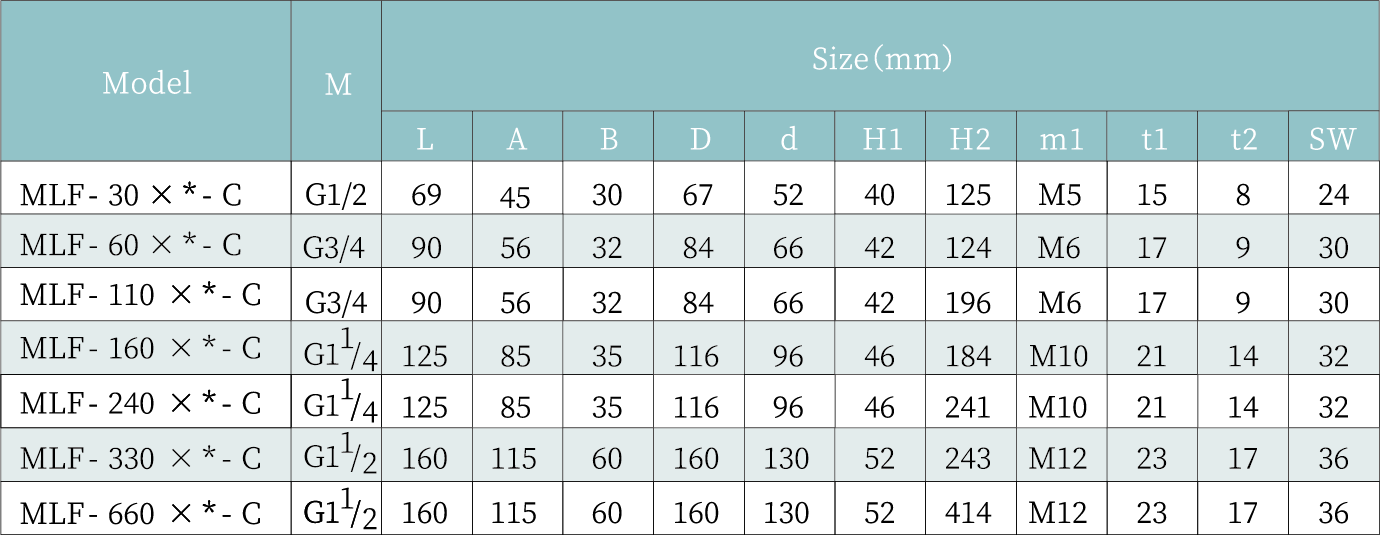

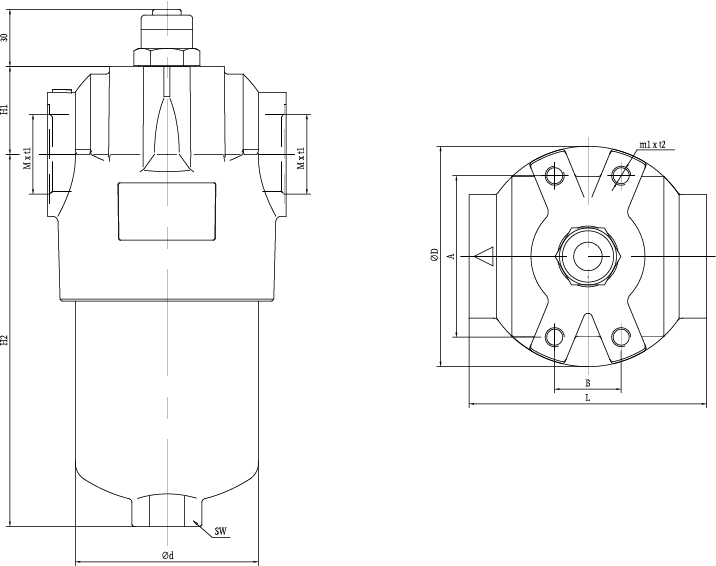

Mounting Diemension
