Installed upstream of one or more components in the pressure line system, the pressure filter ensures effective protection by maintaining the desired contamination level. High-quality glass fiber or filter paper is commonly used as the filtration media for optimal performance.
Installed upstream of one or more components in the pressure line system, the pressure filter ensures effective protection by maintaining the desired contamination level. High-quality glass fiber or filter paper is commonly used as the filtration media for optimal performance.
Contamination Indicator
Visual or electrical contamination indicator can be installed on the filter to observe the contamination of element.

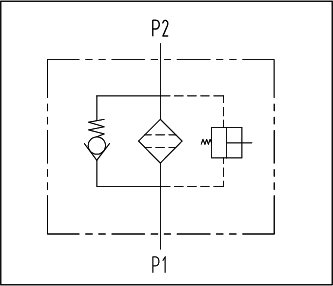

By-pass Function
By-pass valve will crack to protect the normal operation of element and system when pressure drop reaches to the set value.
Type of Construction: Inline Mounted
Max Pressure: 42MPa

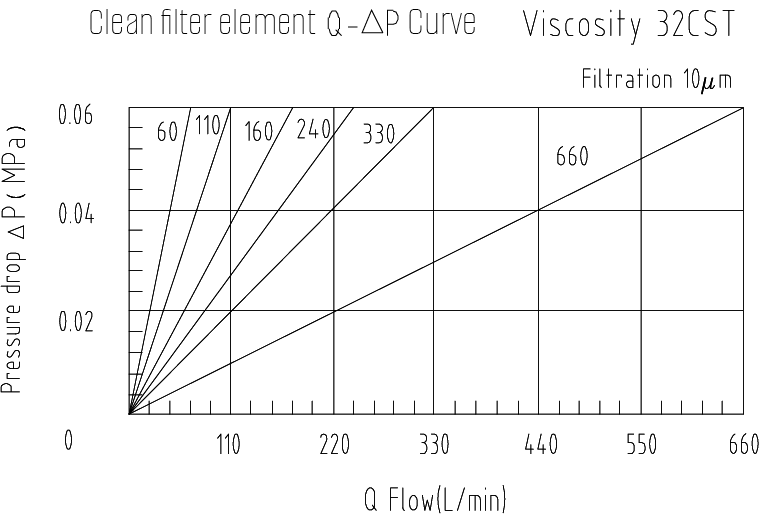

Flow Range: 330L/min~660L/min
Connection: Flange/Thread
Operating Temp: -40℃~+120℃
Pressure Indicator Option: 0.5MPa
By-pass Valve Cracking Pressure: 0.6MPa
Filter Media: Glass Fiber
Bowl Housing: Nodular Cast Iron, Steel
Sealing Material: NBR
Fluid Compatibility: Suitable for mineral Oil, Synthetic Oil
Please contact our sales staff if there is any additional media you need.
