SLF Series Pressure Line Filter

In modern industrial systems, high-pressure filters have become a key device for ensuring fluid cleanliness and stable system operation, thanks to their exceptional performance. Designed specifically for high-pressure environments, these filters can withstand extreme pressures while maintaining high filtration efficiency, effectively removing solid particles, impurities, and contaminants from fluids. Manufactured from high-strength materials, high-pressure filters offer excellent pressure resistance and corrosion resistance, ensuring stable operation even under harsh conditions such as high temperatures, high pressures, and chemical corrosion. Their compact design and flexible installation options make them easy to integrate into various complex industrial systems without occupying excessive space. Additionally, high-pressure filters are equipped with advanced filter element blockage indicators and bypass valves. These features monitor the filter element’s condition in real-time, alert users to replace the filter element in a timely manner, and automatically open the bypass when the filter element is clogged, ensuring uninterrupted system operation and further enhancing the reliability and maintenance convenience of the equipment. With characteristics of high efficiency, durability, and reliability, high-pressure filters are widely used in hydraulic systems, petrochemicals, mechanical processing, aerospace, and other fields, becoming a core component for ensuring the efficient and stable operation of industrial systems.

Features

Contamination Indicator

Visual or electrical contamination indicator can be installed on the filter to observe the contamination of element.

By-pass Function

By-pass valve will crack to protect the normal operation of element and the system when pressure drop reaches to the set value.

Specification

Type of Construction: Inline Mounted

Max Pressure: 6.3MPa

Flow Range: 400L/min~800L/min

Contection: Flange

Operation Temp: -40℃~+120℃

Pressure Indicator Option: 0.35MPa

Valve Setting Pressure: 0.4MPa

Filter Media: Glass Fiber

Housing Material: Aluminum Alloy, Ductile Iron, Carbon Steel

Sealing Material: NBR

Fluid Compatibility: Suitable for mineral Oil, synthetic oil

Please contact our sales staff if there is any additional media you need.

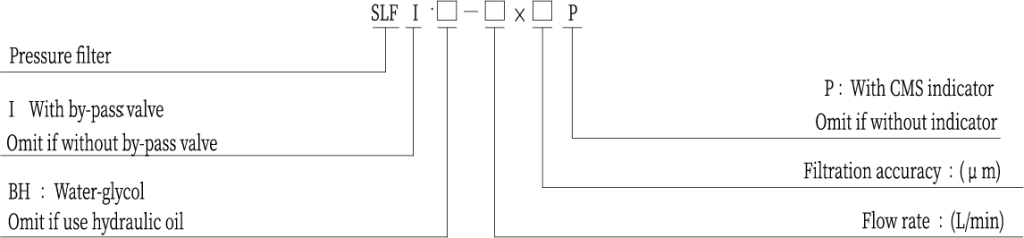

Model Code

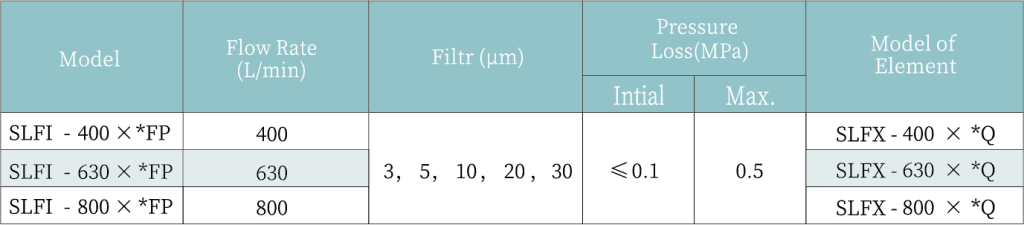

Technical Parameter

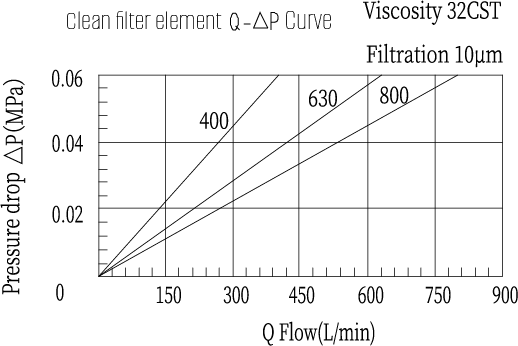

Element Pressure Drop against Flow Curves

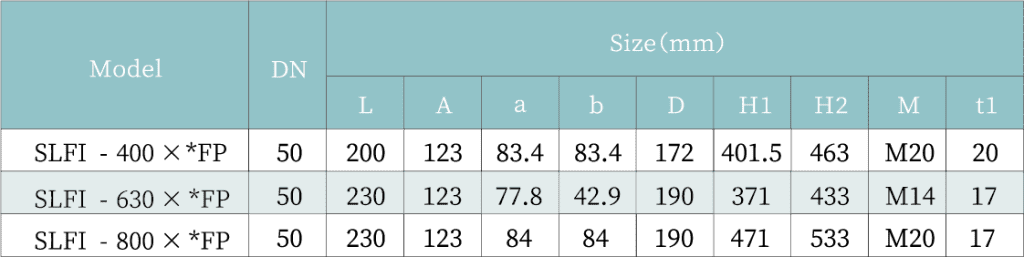

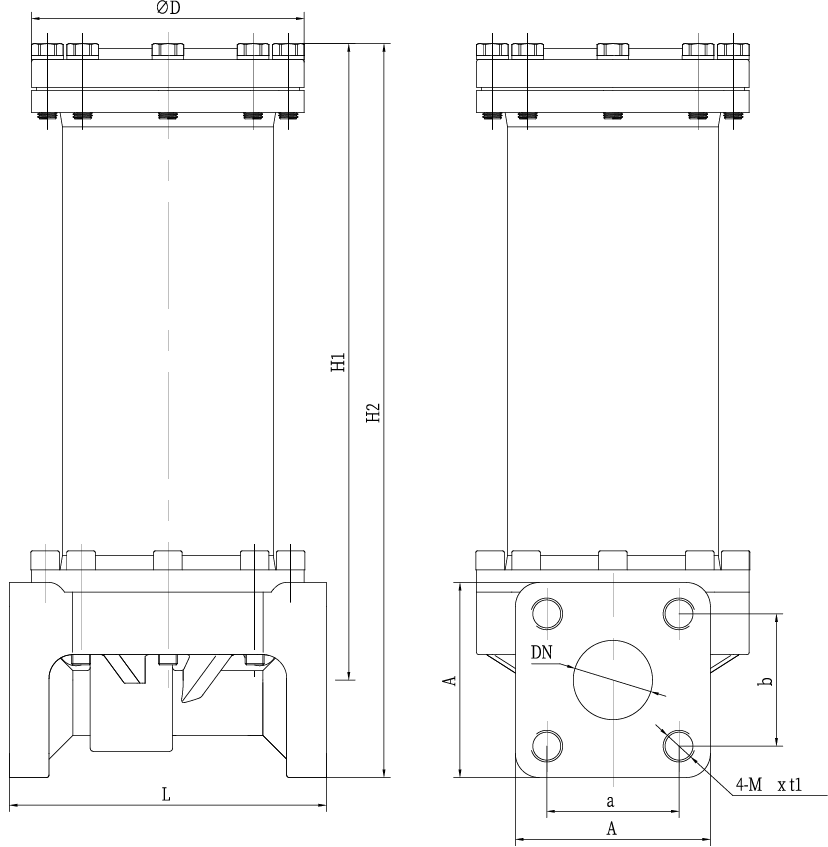

Mounting Diemension
