Our Inline Mounted Aluminum ZU-A Series Return Line Filter is designed for Construction Machinery, providing an efficient solution for fluid cleanliness. With aluminum construction for durability and corrosion resistance, and an inline mounting design for easy integration, the ZU-A Series filter removes contaminants from the return line, protecting components and extending machinery life. Suitable for construction and other industrial applications, it offers reliable performance and easy maintenance, ensuring smooth and efficient operation.
Type of Construction: Inline Mounted
Max pressure: 1.6MPa
Flow Range: 10~1000L/min

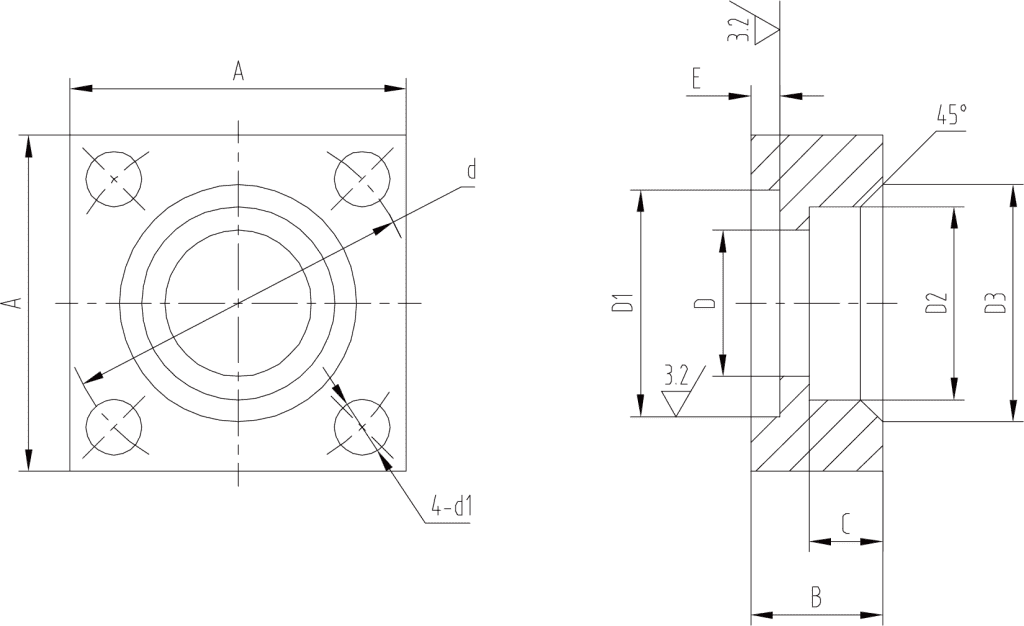

Connection: Flange/Thread/Manifold
Operating Temp:-40℃~+120℃
Filter Media: Glass Fiber, Cellulose, Wire Mesh
Filtration Accuracy: 3~30μm
Pressure Indicator Option: 0.35MPa
For Visual and Electrical Indicator Use
By-pass Valve Cracking Pressure: 0.4MPa
Bowl Housing: Aluminum Alloy
Sealing Material: NBR
Fluid Compatibility: Suitable for mineral oil, synthetic oil
Please contact our sales staff if there is any additional media you need.
