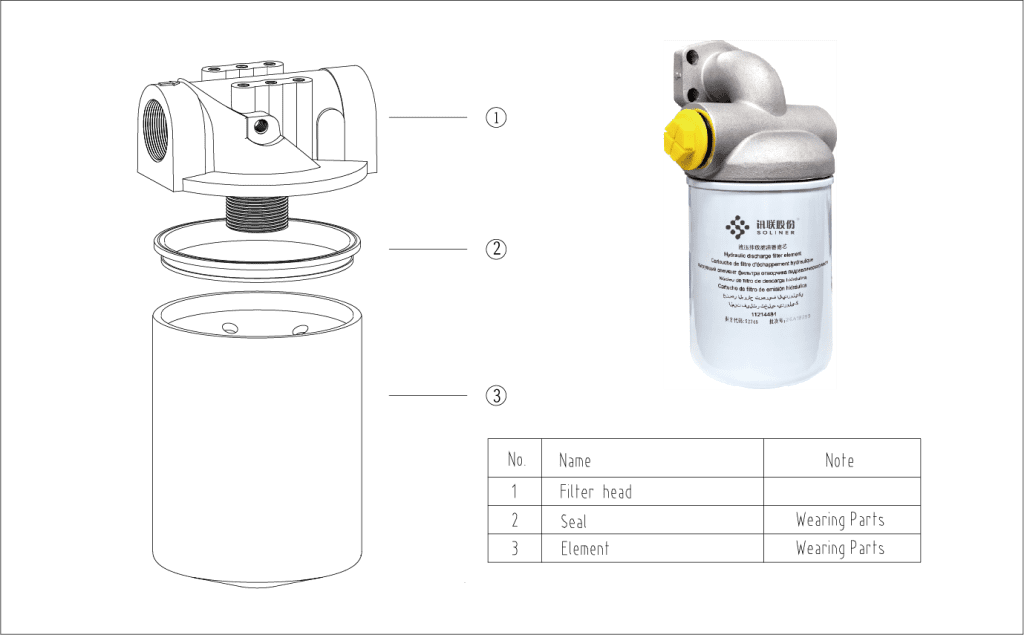

SP Spin-on Line Filter

SP Spin-on Line Filter

SP Spin-on Line Filter for easy maintenance and reliable hydraulic fluid cleanliness. Quick element replacement, high efficiency, and secure inline installation.

Category:

Specifications

Type of Construction: Inline Mounted

Max Pressure: 0.7MPa

Flow Range: 20~320L/min

Contection: Thread

Operation Temp: -20℃~+100℃

Filter Media: Filter Paper

Filtration Accuracy: 10-25μm

Pressure Indicator Option: Suction -0.018MPa Return0.2MPa

By-pass Valve Cracking Pressure: 0.25MPa

Sealing Material: NBR

Fluid Compatibility: Suitable for mineral Oil, synthetic oil

Please contact our sales staff if there is any additional media you need.

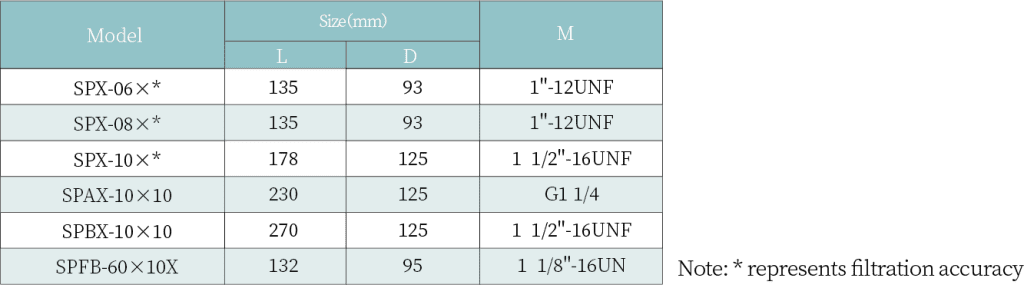

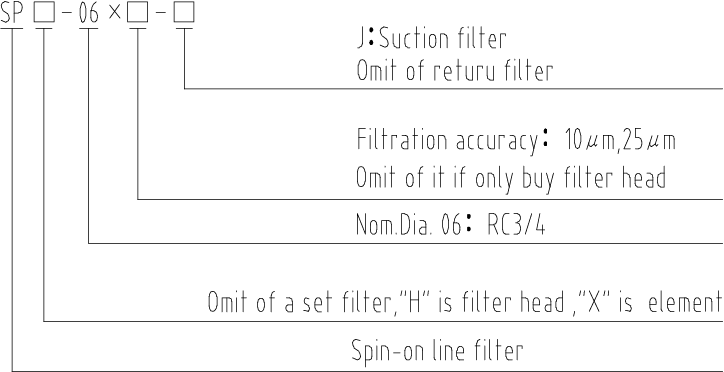

Model Code

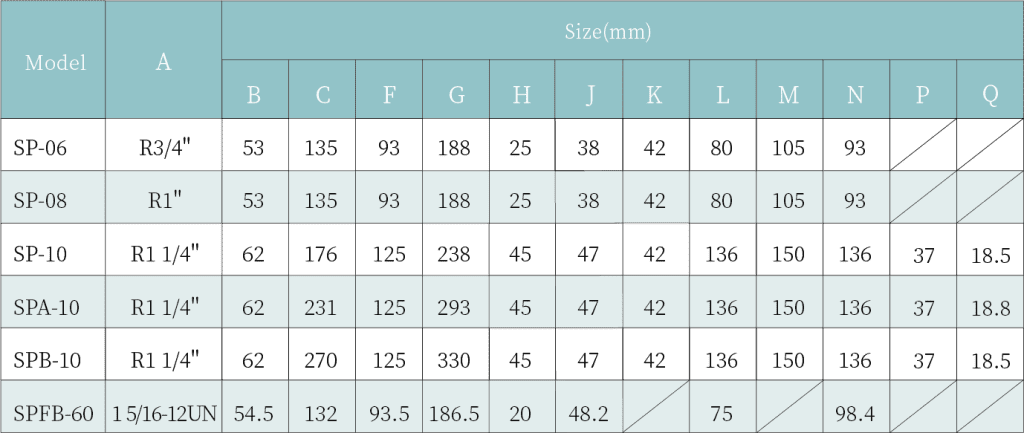

Technical Parameter

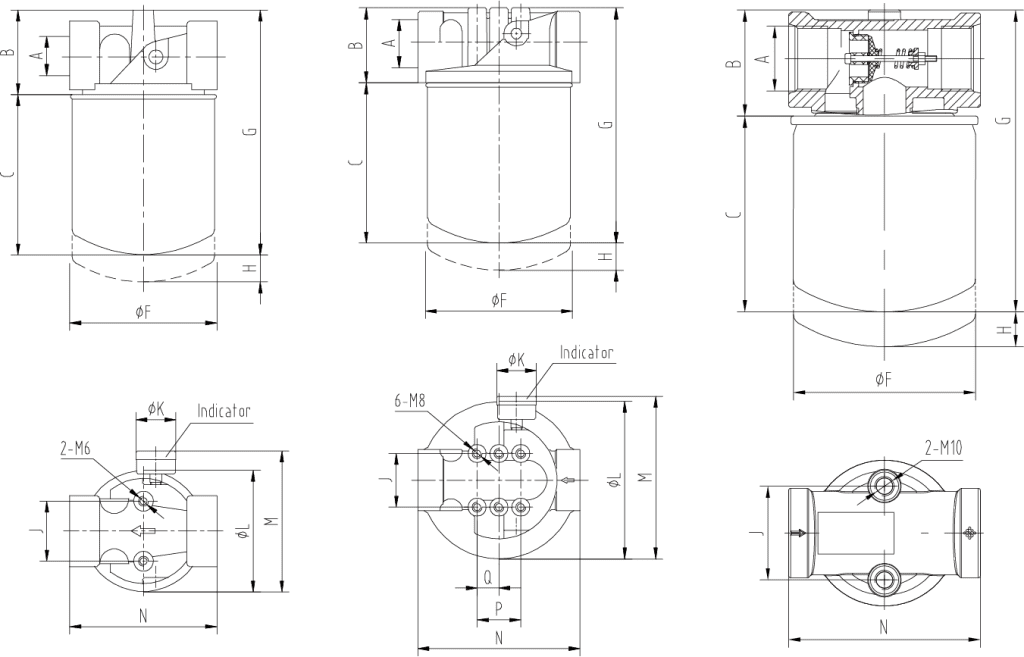

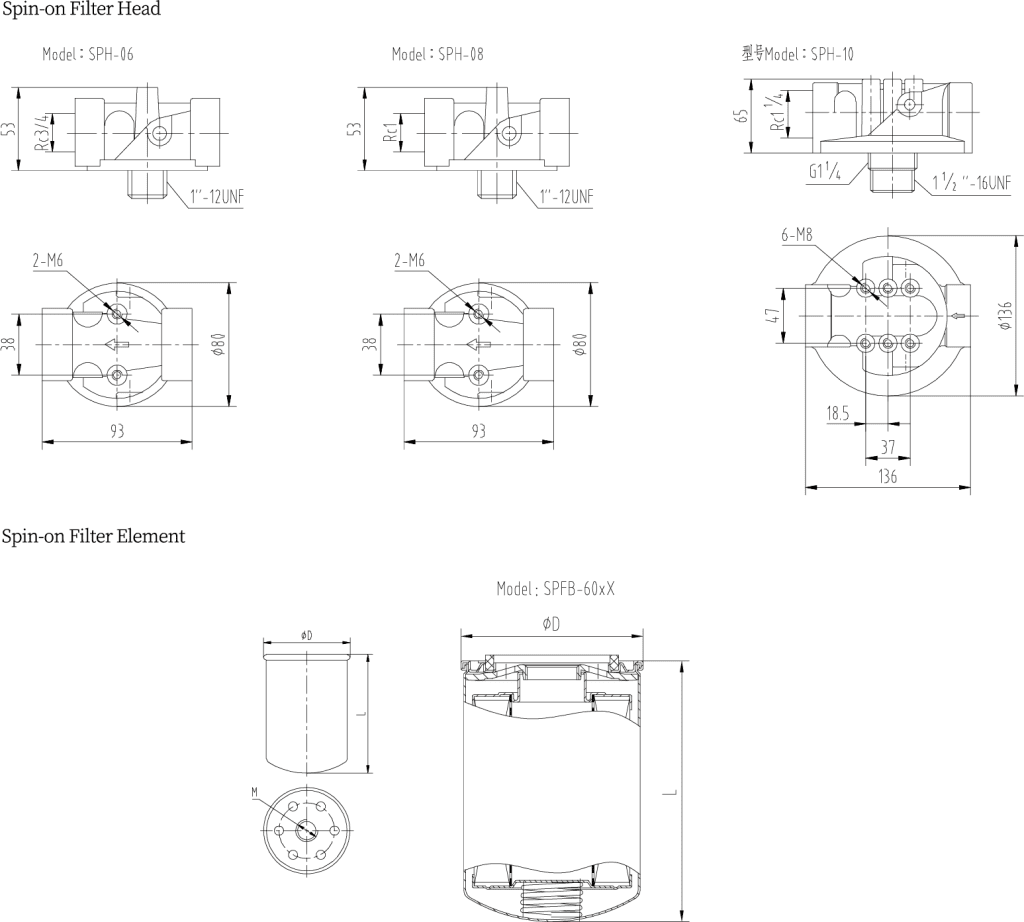

Mounting Diemension

GET IN TOUCH

Contact Form product page

Related products

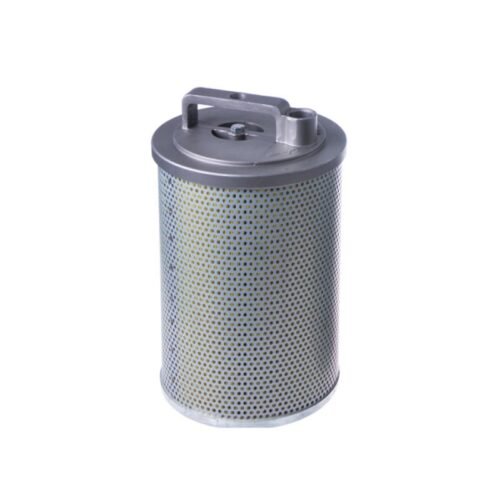

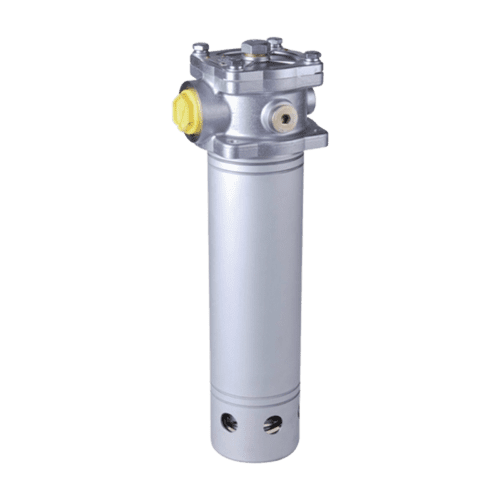

EF Series Return Filter

EF Series Return Filter

Read more
XL-FB160 Series Return Filter

XL-FB160 Series Return Filter

Read more
RF Series Tank Mounted Return Filter

RF Series Tank Mounted Return Filter

Read more

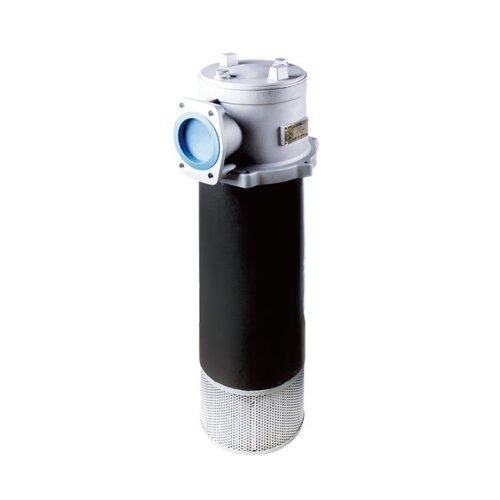

RFB Series Check Valve Magnetic Return Filter

RFB Series Check Valve Magnetic Return Filter

Read more

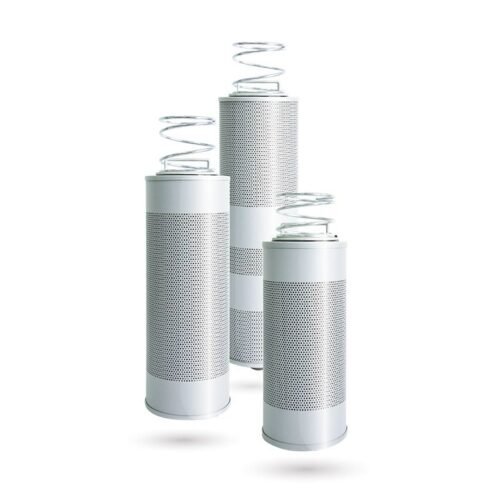

High-capacity Return Oil Filter

High-capacity Return Oil Filter

Read more

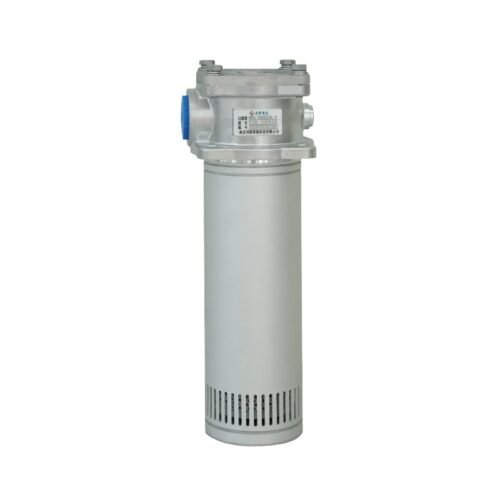

RFA Series Check Valve Magnetic Return Filter
